BMS-A206 Mini, Digital, High Speed, Coreless
Heli 250/450Class Cyclic, EP Aircraft, 3D Airplane
DETAILS
Application
| 1/12 EP Car EP Aircraft, Heli 250/450 Class CCPM |
Specifications
| Torque At 4.8V |
2.6 kg-cm / 36 oz-in |
| Torque At 6.0V |
3.2 kg-cm / 44 oz-in |
| Speed At 4.8V |
0.06 sec / 60° |
| Speed At 6.0V |
0.05 sec / 60° |
Power Supply
| Operating Voltage Range |
4.8V ~ 6V |
Mini Servo
| Control System |
Digital Controller |
| Dead Band Width |
0.001ms ( 1us ) |
Mechanical Specifications
| Ball Bearing |
Dual |
| Gear |
Metal Gears |
| Motor |
Japan Coreless Motor |
| Horn / Gear Spline |
25 Teeth ( Same as F-Type )
|
Physical Specifications
| Dimension (mm) |
23 x 12 x 27.25 mm / 0.9 x 0.47 x 1.07 in |
| Weight (gram) |
22.5 ± 1 grams / 0.72 oz |

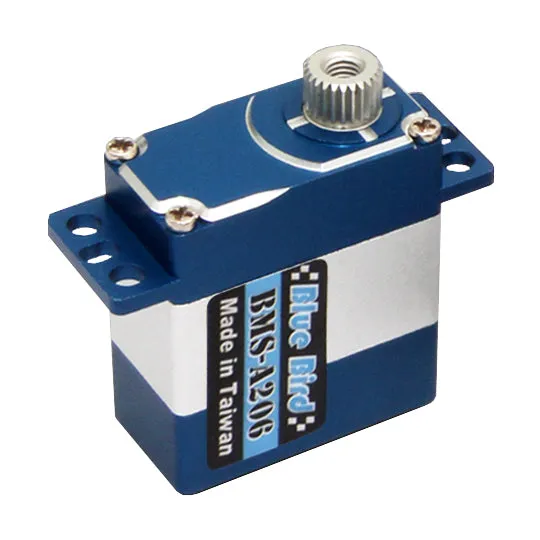

| Product Picture / Dimension Sketch |
|
